GR2-4.9A-A Adjustable Camera Vibration Isolator for Helicopter Drone UAV

adjustable camera vibration isolator

drone camera vibration dampener

helicopter UAV vibration isolator

Place of Origin:

China

ชื่อแบรนด์:

Hoan

ได้รับการรับรอง:

ISO9001:2015

Model Number:

GR2-4.9A-A

เอกสาร:

GR series.pdf

ติดต่อเรา
ขอคําอ้างอิง
รายละเอียดสินค้า
Marketing Type:
Hot Product 2024
Waterproof:
No
Model:
GR2-4.9A-A
Condition:
New
After Warranty Service:
Online support
Mounting Type:
Screw-in
Design Style:
Industrial
Adjustability:
Adjustable
Warranty:
1 Year
Application:
Helicopter, Drone, UAV Camera, Gimbal
Core Components:
Gear
Vibration Dampening:
Yes
Shockproof:
Yes
เน้น:

adjustable camera vibration isolator

,

drone camera vibration dampener

,

helicopter UAV vibration isolator

เงื่อนไขการชําระเงินและการจัดส่ง
Minimum Order Quantity
4
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
สินค้าที่เกี่ยวข้อง
ติดต่อเรา
86-29-88292913
ติดต่อตอนนี้
คําอธิบายสินค้า
GR2-4.9A-A Camera Vibration Isolator

Non-aging metal material for stable performance in extreme conditions

Product Specifications
Attribute Value
Marketing Type Hot Product 2024
Waterproof No
Model GR2-4.9A-A
Condition New
After Warranty Service Online support
Mounting Type Screw-in
Design Style Industrial
Adjustability Adjustable
Warranty 1 Year
Application Helicopter, Drone, UAV Camera, Gimbal
Core Components Gear
Vibration Dampening Yes
Shockproof Yes
Technical Overview

GR Series

The GR series wire rope isolator (commonly known as "butterfly-shaped") developed by Xi'an Hoan Microwave Co., Ltd. is a high-performance vibration damping device based on the principle of nonlinear damping. Its core is composed of multiple strands of stainless steel wire ropes braided according to a specific topological structure, forming a unique double-axis symmetric butterfly wing shape.

This design not only endows the isolator with 360° omnidirectional impact resistance, but also converts mechanical vibration into heat energy for dissipation through the friction energy dissipation mechanism between the wire rope strands.

Compared with traditional rubber isolators, the innovation of the GR series lies in the absence of aging hazards - the metal material completely avoids the defects of rubber that is prone to oxidation and deterioration, and its service life can reach more than 20 years. At the same time, it has environmental universality, and its performance is stable in extreme temperature ranges from -55℃ to +200℃ and harsh working conditions such as salt spray and oil pollution.

Dimension Parameters

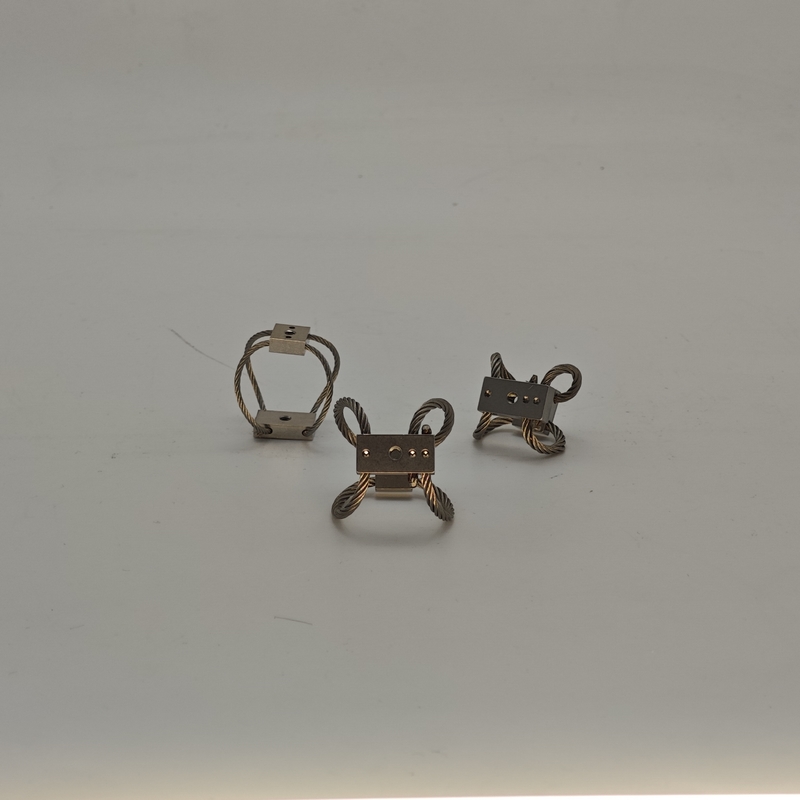

GR2-4.9A-A Adjustable Camera Vibration Isolator for Helicopter Drone UAV 0
Model Height(mm) ±1.5 Width (mm) Weight (kg) Mounting Options Thru Hole (mm) Thread (mm) C'sink (°)
GR2-12A-A 16 20 0.06 A,B,C,D,E,S ∅3.3 M3*0.5 90
GR2-9.3A-A 19 21 0.06
GR2-6.7A-A 23 24 0.07
GR2-4.9A-A 27 27 0.07
Static-Load Performance

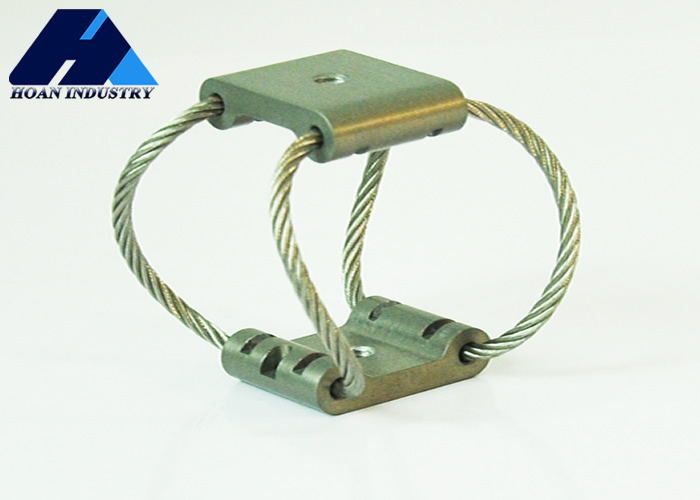

GR2-4.9A-A Adjustable Camera Vibration Isolator for Helicopter Drone UAV 1
No. Model Max Static Load (mm) Max Deflection (mm) Kv(Vibration) (KN/m) Ks(Shock) (KN/m)
1 GR2-12A-A 12 5.8 11 6.1
2 GR2-9.3A-A 9.3 8.4 8.8 4.0
3 GR2-6.7A-A 6.7 11.7 5.3 1.9
4 GR2-4.9A-A 4.9 15.7 3.5 1.2
Application Scenarios
Applications Typical Equipment Protection From Operational Advantages
Shipboard Electronics, Computers, Machinery Explosive blast, Inherent vibration, Storms Long life, Maintenance-free, Temperature extremes, Corrosion resistance, All axes protection
Rough Terrain Vehicles Instrumentation, Generators, Electronics Rough terrain, Poor road conditions, Collision Long life, Maintenance-free, Temperature extremes, Ozone, Radioactivity, UV Radiation
Shipping Containers Optics, Instruments, Missiles, Electronics Transit, Handling drop, Loading/Unloading Long life, Maintenance-free, Exposure to moisture, Repeated use
Aircraft Electronics, Computers High-G maneuvering, Hard landings, Turbulent air Temperature and altitude extremes, Lightweight
Industrial Equipment Centrifuge, Dryers, Pumps Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness Long life, Maintenance-free, Corrosive environments
Ordnance Equipment Computer controls, Electronics Rough terrain, Railroad humping, Transit Maintenance-free, Temperature extremes, Nearby blast
Medical Equipment Mechanical equipment necessary for patient care Vibration from moving parts, Mobile carts-Transport shock Maintenance-free, No out gassing, Can be sterilized
Chimneys Chimneys, Scrubbers, Measuring devices Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc. Maintenance-free, Temperature extremes, Corrosive environments
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are manufacturer of industrial workshop damping vibration and micro-vibration absorbing products with many year experience in China.
Q: How long is your delivery time?
A: If we have stock, we can delivery immediately. If no stock, depends on QTY, but normally no more than 20 working days.
Q: What's the weight and measurement for the product?
A: Different size with different amount, please contact us for details.
Q: Can the products be manufactured by customer's requirement?
A: Yes, OEM service available.
Q: What do you need to know for fast quotation?
A: I need your equipment weight, volume; Shock and vibration requirements of the equipment; We would appreciate these details on the application environment of the device.
Q: Visiting company is allowed or not?
A: Yes, we welcome customers visiting our company. We are located in Xi'an, Shaanxi, China.
Customer Photos

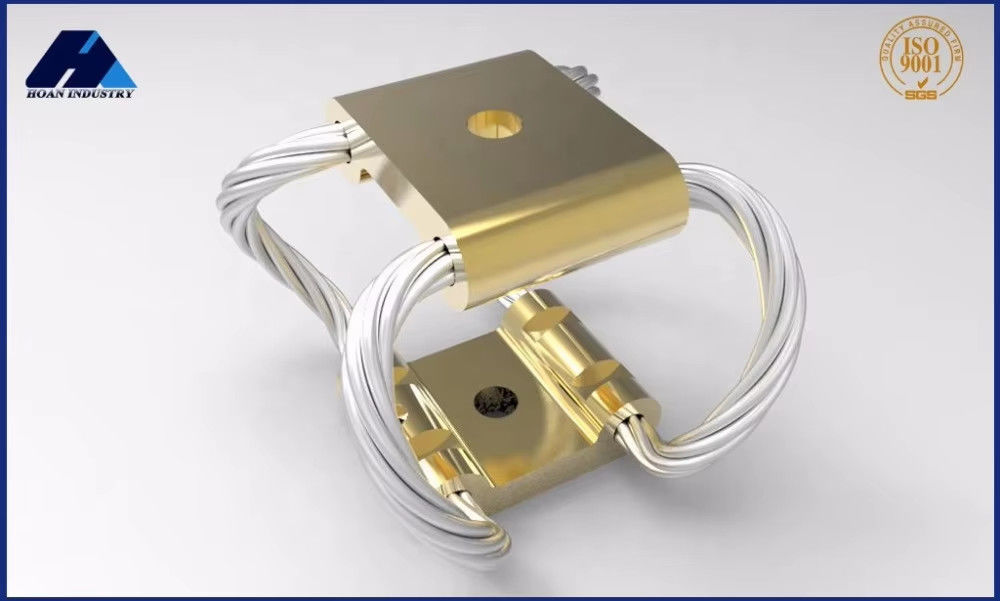

GR2-4.9A-A Adjustable Camera Vibration Isolator for Helicopter Drone UAV 2
