สถานที่กำเนิด:
จีน
ชื่อแบรนด์:
Hoan
หมายเลขรุ่น:
เจแซดพี-3.2
| Feature | Vibration isolation |
| Mounting Thread Size | M6 |
| Height | 29mm |
| Maintenance | Low |
| Isolation Efficiency | 90% |
| Working Temperature | -55 ~ +120 |
| Size | Various sizes available |
| Packing | Standard Packing |
| Core Components | Bearing |
| Installation | Easy to install |
| Warranty | 1 Year |

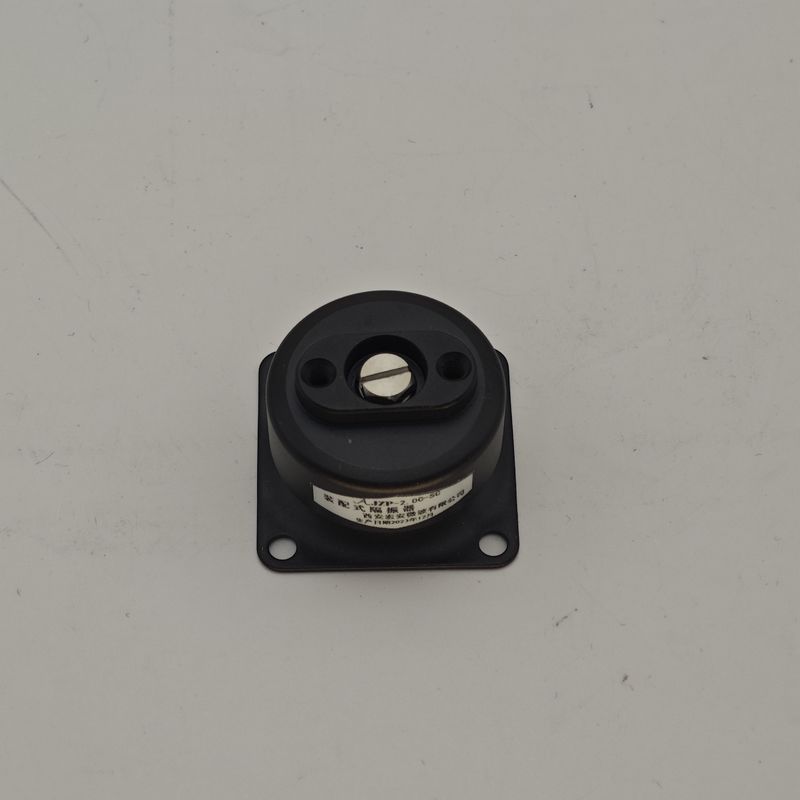

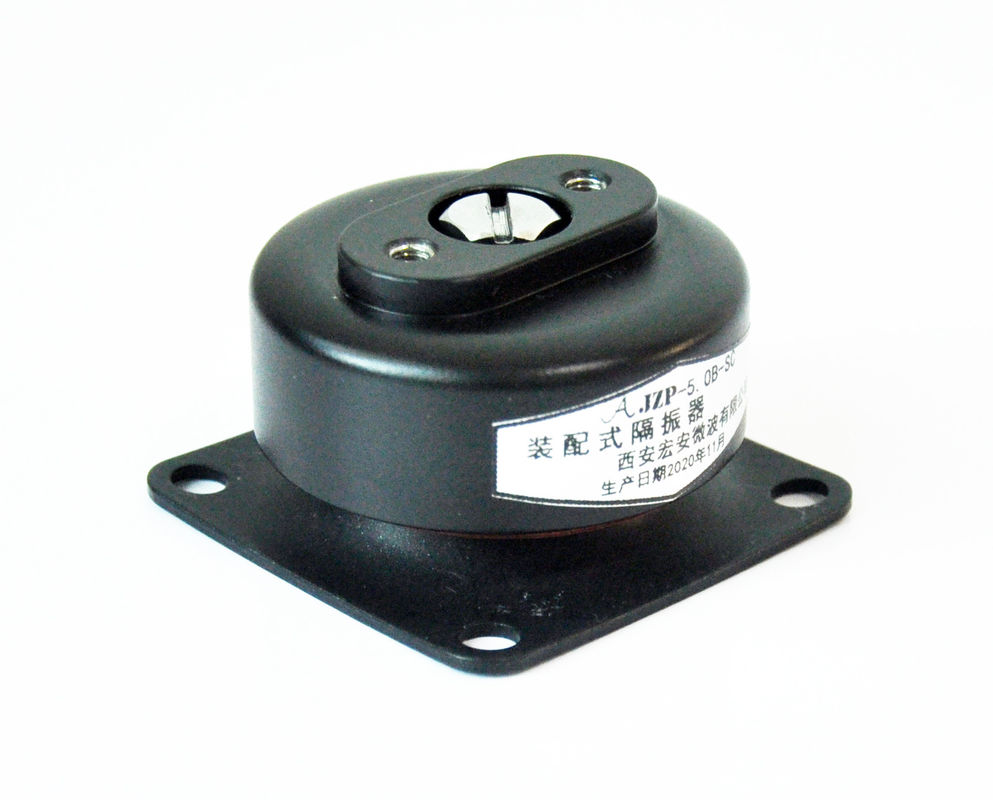

Vibration exists everywhere, and the JZP rubber damping isolator from Xi'an Hoan Microwave Co., Ltd. features unique multi-directional vibration isolation capabilities, offering comprehensive protection for equipment.
Traditional isolators typically work well only in a single direction, but the JZP model breaks through this restriction. Its innovative structural design achieves approximately equal stiffness in both vertical and horizontal directions. When equipment is subjected to vibrations from various directions, the isolator responds promptly.
This multi-directional vibration isolation makes it ideal for numerous applications including military electronic equipment, precision instruments, petroleum electrical appliances, and other industrial applications where complex vibration conditions exist.
| Model | Pz Nominal Load (KG) | Deflection Displacement (mm) | Resonant Frequency (Hz) | Working Temperature (℃) | Shock (Ks) | Peak Response G | |
|---|---|---|---|---|---|---|---|
| JZP-2.5 | 2.5 | ≤0.3 | 35±3 | -45～+65 | 100g/6ms | ≤3.6km/s2 | |
| JZP-3.2 | 3.2 | Same as above | |||||
| JZP-4.2 | 4.2 | Same as above | |||||
| JZP-5.2 | 5.2 | Same as above | |||||
| JZP-6.0 | 6.0 | Same as above | |||||
| JZP-7.0 | 7.0 | Same as above | |||||
| JZP-7.5 | 7.5 | Same as above | |||||
| JZP-8.5 | 8.5 | Same as above | |||||
| JZP-10.5 | 10.5 | Same as above | |||||
| JZP-13.5 | 13.5 | Same as above | |||||
| JZP-15 | 15 | Same as above | |||||
