สถานที่กำเนิด:
จีน
ชื่อแบรนด์:
Hoan
หมายเลขรุ่น:
เจแซดพี-5.2-SC-SC1

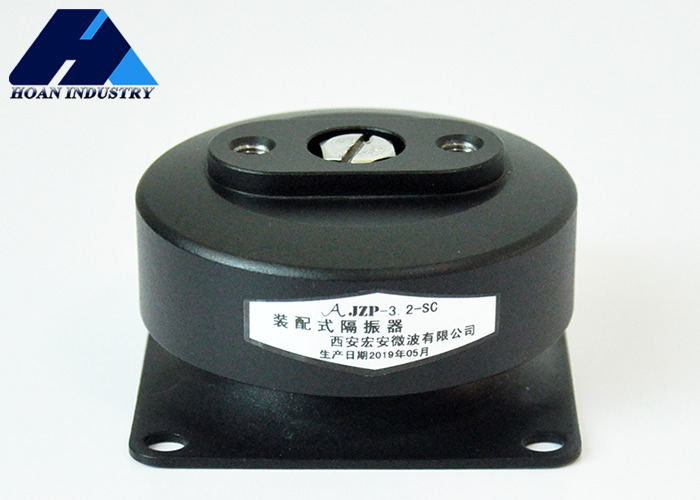

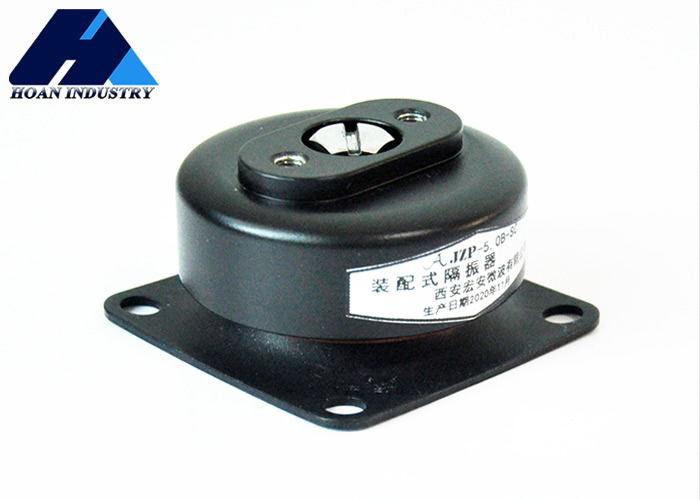

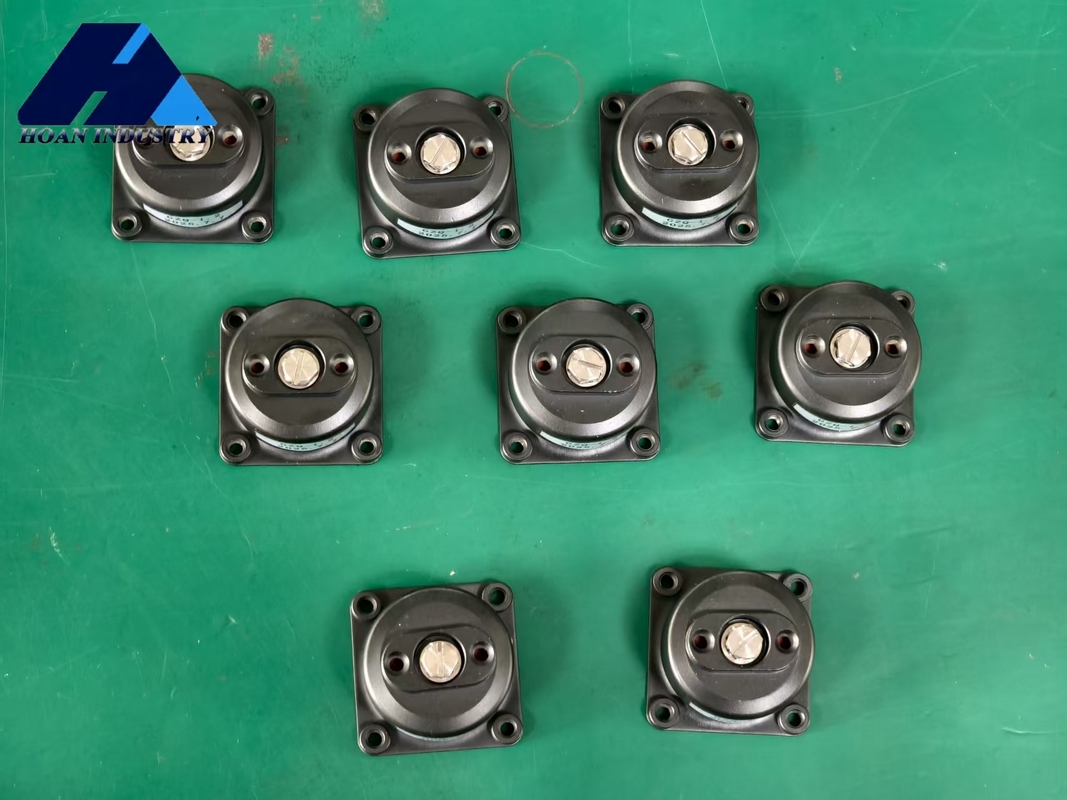

In corporate cost accounting, precision instruments represent significant capital investments. The JZP-SC-SC1 series friction damping vibration isolators from Xi'an Hoan Microwave provide a key solution to extend equipment lifecycle and improve return on investment by effectively mitigating vibration damage.
Vibration damage to equipment is cumulative and fatigue-induced, causing issues including bearing wear, loose screws, and optical component misalignment. The JZP-SC-SC1 fundamentally cuts off vibrational energy transmission, providing:
A one-time investment in high-quality vibration isolation proves more cost-effective than expenses from vibration-related issues such as frequent repairs, production downtime, and premature equipment replacement.
Key Construction Features:
| Model | D (mm) | H±1 (mm) | h (mm) | A±0.2 (mm) | B (mm) | d | d2 | R | b (mm) |
|---|---|---|---|---|---|---|---|---|---|
| JZP-SC-SC1 | 60 | 36 | 24.5 | 50 | 60 | M5 | ∅5.5 | 5 | 28 |
| Model | Nominal Load (KG) | Static Displacement (mm) | Working Temperature (℃) | Resonance Frequency (Hz) | Impact Test | Limited Period |
|---|---|---|---|---|---|---|
| JMZ-3.2-SC-SC1 | 3.2 | ≤0.3 | -45～+65 | 41.5±5 | 100g 12 times | 8 |
| JMZ-4.2-SC-SC1 | 4.2 | ≤0.3 | -45～+65 | 41.5±5 | 100g 12 times | 8 |
| JMZ-5.2-SC-SC1 | 5.2 | ≤0.3 | -45～+65 | 41.5±5 | 100g 12 times | 8 |
| JMZ-6.0-SC-SC1 | 6.0 | ≤0.3 | -45～+65 | 41.5±5 | 100g 12 times | 8 |
| JMZ-7.0-SC-SC1 | 7.0 | ≤0.3 | -45～+65 | 41.5±5 | 100g 12 times | 8 |
| JZP-7.5-SC-SC1 | 7.5 | ≤0.3 | -45～+65 | 41.5±5 | 100g 12 times | 8 |
| JZP-9.0-SC-SC1 | 9.0 | ≤0.3 | -45～+65 | 41.5±5 | 100g 12 times | 8 |
| JZP-10.5-SC-SC1 | 10.5 | ≤0.3 | -45～+65 | 41.5±5 | 100g 12 times | 8 |
| JZP-13.5-SC-SC1 | 13.5 | ≤0.3 | -45～+65 | 41.5±5 | 100g 12 times | 8 |
| JZP-15-SC-SC1 | 15 | ≤0.3 | -45～+65 | 41.5±5 | 100g 12 times | 8 |
Xi'an Hoan Microwave provides more than products - we offer asset management solutions that protect your precision equipment investments through superior vibration control technology.
