JGX-1276D-233B Wire Rope Vibration Isolator: Low Resonant Peak, Large Deflection Shock Protection

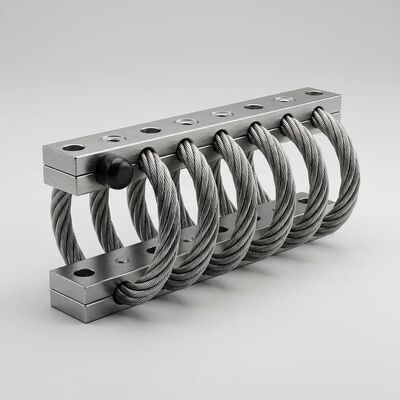

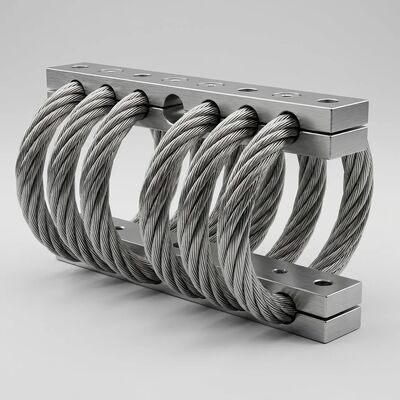

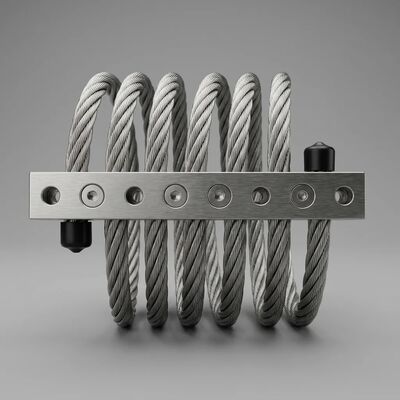

The JGX-1276D-233B is a heavy-duty wire rope vibration isolator engineered to deliver two critical performance attributes that conventional mounts struggle to achieve simultaneously: exceptionally low resonant peak amplification and generous deflection capacity under shock loading. With 12.7 mm diameter stainless steel wire rope formed into 6 precision coils and rated for 233 kg maximum static load, this isolator provides best-in-class protection for equipment operating in high-shock, high-vibration environments.

Understanding Resonant Peak: Why It Matters

Every vibration isolator has a natural frequency at which it resonates. At this frequency, a poorly designed isolator can amplify input vibration by a factor of 5:1, 8:1, or even higher—transforming a moderate vibration source into a destructive force that damages sensitive equipment. The JGX-1276D-233B's stranded wire rope construction fundamentally addresses this problem through its non-linear stiffness and friction damping characteristics:

• Resonant Amplification Below 3:1: Unlike linear spring-damper systems that exhibit sharp resonance peaks, the JGX-1276D-233B's progressive stiffness curve and inter-strand Coulomb friction combine to flatten the transmissibility curve. At the isolator's natural frequency, amplification is held below 3:1, compared to 5-10:1 for typical elastomeric mounts of equivalent load rating.
• Broadband Energy Dissipation: As the wire rope deflects, individual strands rub against one another at thousands of micro-contact points. This distributed friction mechanism converts vibration kinetic energy into negligible heat across a wide frequency range (10 Hz to 2000+ Hz), eliminating the narrow-band effectiveness that plagues tuned-mass and viscous damper solutions.
• No Amplification at High Frequency: Above the isolation frequency, the transmissibility curve drops steeply and continues to decline. There is no secondary resonance, no spring surge, and no high-frequency pass-through—vibration modes that commonly occur in coil spring isolators when excited at harmonics of their natural frequency.

Large Deflection Capability: Surviving the Unexpected

Equipment protection is ultimately defined by how an isolator performs under extreme conditions, not nominal operation. The JGX-1276D-233B's large deflection capacity ensures survival during worst-case shock events:

• Up to 40% Deflection Without Damage: The wire rope helix can compress or extend by up to 40% of the isolator's nominal height without permanent deformation. Under a sudden shock load, this generous travel distance absorbs impact energy gradually rather than transmitting it abruptly to the equipment chassis.
• Progressive Load-Deflection Curve: As deflection increases, the wire rope strands progressively tighten and engage, creating a stiffening response that naturally limits maximum travel. This inherent snubbing behavior prevents hard bottoming-out that would otherwise transmit a secondary shock pulse to the payload—a critical safety feature for fragile electronics and precision instruments.
• Multi-Directional Shock Absorption: Unlike uniaxial dampers that protect in only one direction, the JGX-1276D-233B's helical geometry provides large deflection capacity simultaneously in compression, tension, and shear/roll. A single mount handles shocks from any direction, simplifying system design and reducing the total number of isolators required.
• Repeatable Performance After Overload: Wire rope isolators recover their original geometry and damping characteristics after shock events that would permanently compress, tear, or delaminate elastomeric mounts. This repeatability is essential for applications subject to recurring shock loads—from railway coupler impacts to stamping press recoil to wave slam on shipboard equipment.

Technical Specifications

Mounting Bars: Material and Surface Treatment

The JGX-1276D-233B is available with two mounting bar materials to suit different application requirements. The mounting bars are the interface between the wire rope helix and your equipment, and selecting the right configuration ensures optimal long-term performance.

Material Options:

• Stainless Steel Bars: Maximum corrosion resistance and structural strength. Recommended for outdoor installations, marine environments, and heavy industrial settings where the mounting bars may be exposed to weather, salt spray, or chemical vapors. Stainless bars also provide the highest clamping force retention over decades of service.
• Aluminum Alloy Bars (6061-T6): Lightweight alternative with excellent strength-to-weight ratio. Preferred for weight-sensitive applications where every kilogram counts—such as aerial platforms, mobile equipment, and transportable systems.

Surface Treatment Selection for Aluminum Bars:

• White Anodizing: The standard surface treatment that enhances the natural hardness of aluminum while preserving its metallic appearance. Suitable for general industrial environments with normal humidity and temperature conditions. Provides effective protection against surface oxidation and minor abrasion.
• Hard Anodizing: A specialized treatment that creates a significantly thicker and harder oxide layer on the aluminum surface. The resulting dark gray finish offers superior wear resistance, making it the preferred choice for installations subject to abrasive dust, frequent handling, or mechanical contact during equipment maintenance activities.

Key Characteristics of WNRLN Wire Rope Isolators

• No creep or aging over the entire service life
• High internal damping without fluid or gas dependency
• Extremely wide operating temperature range (-70°C to +260°C)
• Wide variety of mounting configurations and fitting options
• Rapid and economical prototyping for custom specifications
• Exceptionally rugged construction with decades-long lifespan
• Excellent combined shock and vibration isolation in a single unit
• Unaffected by chemical agents, seawater, ozone, UV rays, and industrial solvents

Applications Requiring Low Resonance and High Deflection

• Seismic Isolation for Critical Infrastructure: Protect server racks, communication cabinets, and emergency power systems in earthquake-prone regions. The large deflection capacity accommodates seismic displacement while low resonant amplification prevents equipment damage during low-frequency ground motion.
• Mobile Generator and Pump Sets: Isolate trailer-mounted diesel generators, hydraulic power units, and mobile pump systems from road-induced shock and vibration during transport, while providing stable mounting during stationary operation.
• Railway Signaling and Trackside Equipment: Protect sensitive signaling relays, axle counters, and communication nodes from the combined effects of train pass-by vibration, rail joint impact, and maintenance vehicle shock loading.
• Heavy Industrial Machinery: Isolate large stamping presses, forging hammers, and rock crushers where each operating cycle generates a high-energy shock pulse. The low resonant amplification prevents the isolator itself from becoming a vibration amplifier at specific operating speeds.
• HVAC and Chiller Systems on Elevated Structures: When chillers and air handling units are installed on rooftops or mezzanine floors, structure-borne vibration can cause building resonance. The JGX-1276D-233B's broad-spectrum damping prevents this while accommodating wind-induced sway and thermal expansion movement.
• Marine Vessel and Offshore Platform Equipment: Protect navigation electronics, radar systems, and mechanical equipment from the combined shock of wave slam, propeller cavitation, and engine vibration—conditions where simultaneous large deflection and low resonance are non-negotiable for operational reliability.

Performance Comparison: Wire Rope vs. Conventional Isolators

Quality Assurance and Testing

Each JGX-1276D-233B undergoes 100% dimensional verification and sample lot dynamic testing on an electrodynamic shaker table. Transmissibility curves are validated against design specifications, and load-deflection characteristics are measured at multiple compression levels to confirm compliance with rated capacity. All manufacturing is performed under ISO 9001:2015 certified quality management with full material lot traceability from raw wire rope spool to finished isolator.
