JGX-0160D-3.2A Wire Rope Vibration Isolator Optimized Natural Frequency Zero Outgassing for Cleanroom Vacuum Use

JGX-0160D-3.2A All-Metal Wire Rope Vibration Isolator – Precision Frequency Matching for Contamination-Sensitive Environments

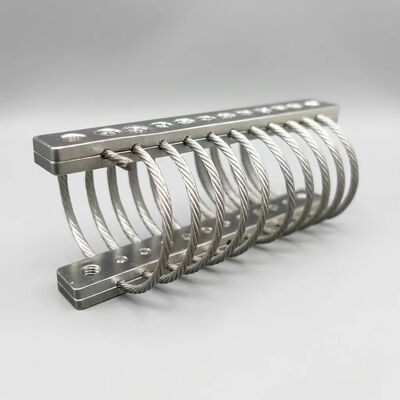

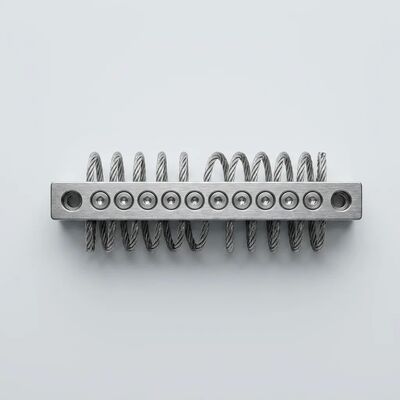

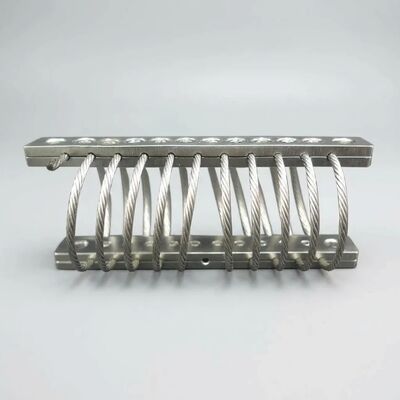

The JGX-0160D-3.2A addresses a critical challenge in precision manufacturing and research: how to provide effective vibration isolation without introducing organic contamination. This 10-loop compact wire rope isolator, built from 1.6 mm stainless steel 304 cable and aluminum alloy 6061-T6 clamping bars, carries a 3.2 kg static load rating in a 0.25 kg package. Its entirely metallic construction eliminates the outgassing, particulate shedding, and chemical leaching inherent to elastomeric mounts, making it the preferred isolation solution for cleanroom, vacuum chamber, semiconductor, and optical applications. Manufactured by Xi'an Hoan Microwave Co. Ltd. under ISO 9001:2015 quality management.

The Science of Natural Frequency Optimization

Effective vibration isolation depends on a fundamental relationship: the isolator's natural frequency must be positioned below the dominant excitation frequencies of the operating environment by a sufficient margin to achieve the desired transmissibility reduction. For the JGX-0160D-3.2A, Xi'an Hoan provides detailed frequency-domain analysis as part of the application engineering process:

• Static Deflection Analysis: Under the supported mass, the isolator's static deflection determines its vertical natural frequency. For the 3.2A variant supporting near its rated load, typical natural frequencies range from 15 to 25 Hz, providing isolation effectiveness (transmissibility < 1) for excitation frequencies above approximately 21–35 Hz
• Transmissibility Curve Prediction: Engineers calculate the complete force transmissibility versus frequency curve for compression, shear, and roll axes, allowing verification that isolation targets are met across the full equipment operating speed range
• Modal Separation Verification: System analysis confirms adequate frequency separation between the isolator-resonance region and both the supported equipment's structural modes and the mounting foundation's resonant frequencies, eliminating coincident amplification risks
• Load Distribution Modeling: For multi-isolator installations, individual isolator loading is calculated accounting for equipment center of gravity offset, ensuring each JGX-0160D-3.2A operates within its design load range for predictable natural frequency behavior
• Damping Contribution: The >15% Coulomb damping ratio limits resonance amplification to approximately 3–4* at the natural frequency, compared to 10–20* for lightly-damped spring isolators, providing robust protection even during start-up and shutdown transients that pass through the resonant region

Zero Outgassing: Why All-Metal Construction Matters

In cleanroom manufacturing and vacuum system applications, every material introduced into the environment becomes a potential contamination source. Conventional vibration mounts represent a significant risk due to their material composition:

• Elastomer Outgassing Mechanisms: Rubber and polyurethane isolators continuously release volatile organic compounds (VOCs) including unreacted monomers, plasticizers, antioxidants, and curing agents. In vacuum systems, these volatiles elevate base pressure, contaminate sensitive surfaces, and can poison catalysts or alter deposition chemistry
• Molecular Film Deposition: Outgassed compounds condense on optical surfaces, forming molecular films that degrade transmission, increase scatter, and shift calibration in laser systems, imaging sensors, and spectroscopic instruments
• Particulate Generation: Elastomers abrade during flexural cycling, releasing micron and sub-micron particles that violate cleanroom particle count specifications and can cause defects in semiconductor wafer processing

The JGX-0160D-3.2A eliminates these failure modes through materials selection:

• Stainless Steel 304 Wire Rope: 7*19 strand construction, inherently free of organic content, non-outgassing under vacuum, compatible with all common sterilization methods including autoclave (saturated steam at 121°C/134°C), gamma irradiation, ethylene oxide, and hydrogen peroxide plasma
• Aluminum Alloy 6061-T6 Clamping Bars: Wrought aluminum with stable surface oxide layer, no organic coatings or treatments required, anodizing options (white or hard) use inorganic electrolytic processes that produce zero organic residue
• No Adhesives, No Lubricants: The wire rope is mechanically clamped between the bars – no bonding agents, thread-locking compounds, or assembly lubricants are used at any stage of manufacture

Cleanroom and Vacuum Compatibility Verification

Seamless Engineering Integration Support

Xi'an Hoan provides end-to-end design integration services to ensure the JGX-0160D-3.2A performs optimally in your specific application:

• Preliminary Design Review: Our engineers review your equipment specifications, vibration environment characterization data, and isolation performance targets to recommend the optimal isolator configuration and quantity
• CAD Model Access: Detailed 3D models provided in STEP, IGES, and major native CAD formats (SolidWorks, Inventor, CATIA, Creo) with accurate geometry for interference checking and assembly documentation
• Mounting Configuration Library: Models available for base-mount, side-mount, and 45-degree compression orientations; custom bar geometries can be developed for non-standard mounting interfaces
• Performance Documentation: Each application receives a technical report including predicted transmissibility curves, natural frequency analysis, static load verification, and recommended installation torque values
• Prototype and Test Support: Configured prototype units available for fit-check and in-situ performance validation prior to series production commitment

Technical Specifications

Core Characteristics

• 100% metallic construction: Zero organic materials, zero outgassing, zero particulate generation
• No creep or ageing: Mechanical properties stable for the full equipment lifetime
• Frequency-independent damping: >15% damping maintained from sub-Hertz to kilohertz range
• All-axes isolation: Effective in compression, shear, and roll simultaneously from a single compact unit
• Environmental immunity: Unaffected by chemicals, seawater, ozone, UV, humidity, salt spray
• Sterilizable: Compatible with autoclave, gamma, EtO, and H₂O₂ plasma sterilization
• UHV compatible: Suitable for ultra-high vacuum environments without virtual leak or contamination risk
• Maintenance-free: No inspection, lubrication, adjustment, or scheduled replacement required

Application Examples by Sector

About Xi'an Hoan Microwave Co. Ltd.

Founded in 2005 in Xi'an, China, Xi'an Hoan has grown into a leading manufacturer of vibration isolation products with over 500 employees and a 100+ person engineering department. The ISO 9001:2015 certified facility produces wire rope isolators, vibration mounts, friction dampers, shock absorbers, and LC filters serving industries including semiconductor manufacturing, precision optics, industrial automation, marine engineering, power generation, and transportation systems. With customers in more than 25 countries, Xi'an Hoan combines manufacturing scale with application-specific engineering support to deliver tailored isolation solutions.

Contact our applications team today to discuss your cleanroom, vacuum, or precision instrumentation isolation requirements, or to request 3D CAD models and a natural frequency analysis for the JGX-0160D-3.2A in your specific application.
