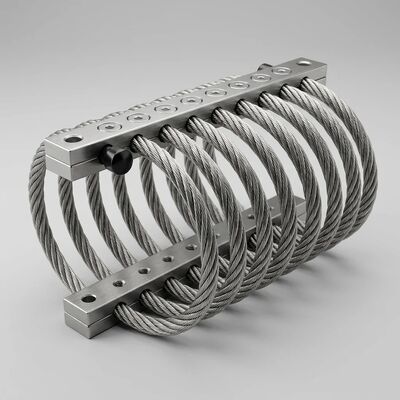

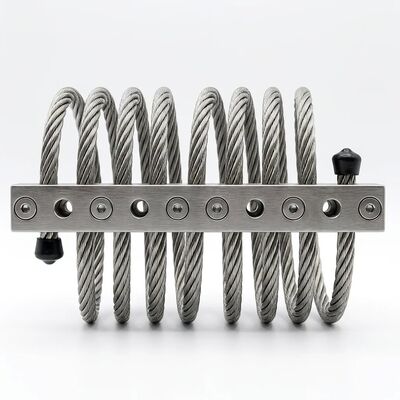

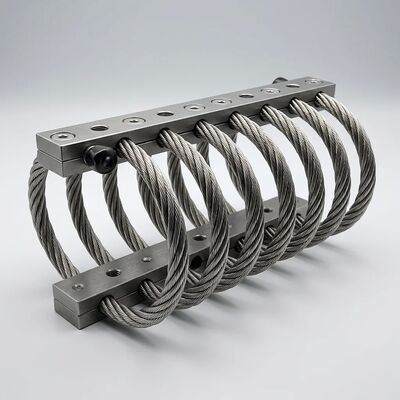

JGX-0958D-108A Wire Rope Vibration Isolator 100% Recyclable Design Secured Supply Chain LTA Support

JGX-0958D-108A Wire Rope Vibration Isolator: Sustainable Industrial Vibration Control with Guaranteed Supply Continuity

Why Sustainability Matters in Vibration Isolation Component Selection

Industrial procurement is undergoing a fundamental shift. Environmental compliance, once a box-ticking exercise at the end of a specification process, is now a front-end selection criterion driven by three converging forces: corporate ESG (Environmental, Social, and Governance) reporting mandates, extended producer responsibility (EPR) regulations in the EU and emerging markets, and carbon border adjustment mechanisms that penalize products with high embedded carbon. The humble vibration isolator—a component often selected on unit price alone—carries a hidden environmental cost that accumulates across every replacement cycle over a machine’s 20-year operating life.

The JGX-0958D-108A addresses this at the material level. Its structural simplicity—two materials, two recycling streams—eliminates the end-of-life disposal cost and environmental burden inherent in multi-material elastomeric mounts that bond rubber to steel with vulcanization adhesives, creating a composite that cannot be economically separated for recycling.

Material Composition and Recyclability: A Component-Level Analysis

Stainless Steel 304 Wire Rope (7*19 Construction, Ø6.4 mm)

• Weight per unit: Approximately 0.52 kg (61% of total unit mass)
• Alloy composition: Fe-18Cr-8Ni-0.08C (max), fully austenitic microstructure
• Recycling pathway: Stainless steel scrap grade 304, accepted by all ferrous and non-ferrous metal recyclers globally
• Scrap value: Typically 50–65% of LME nickel + chromium-adjusted stainless steel scrap index
• Recycling energy: Approximately 30% of primary production energy (electric arc furnace route)
• Recycling degradation: None—SS304 can be recycled infinitely without loss of alloy properties

6061-T6 Aluminum Alloy Clamping Blocks (Hard Anodized)

• Weight per unit: Approximately 0.30 kg (35% of total unit mass, two blocks)
• Alloy composition: Al-1.0Mg-0.6Si-0.28Cu-0.2Cr, precipitation-hardened to T6 temper
• Recycling pathway: Wrought aluminum scrap grade, segregated from stainless steel by simple magnetic separation
• Scrap value: Typically 60–75% of LME primary aluminium price (high-grade wrought scrap premium)
• Recycling energy: Approximately 5% of primary aluminium production energy (95% energy savings vs. Hall-Héroult smelting)
• Hard anodize compatibility: The anodic oxide layer (<50 μm Al₂O₃) dissolves in the molten salt flux during aluminium remelting without contaminating the melt

End-of-Life Disassembly Procedure (Under 60 Seconds per Unit)

1. Remove four M10 * 1.5 mm A2-70 stainless steel bolts using a standard 17 mm socket wrench
2. Separate the two aluminum clamping blocks from the wire rope coil
3. Dispose of bolts and wire rope coil into the ferrous/stainless steel recycling bin
4. Dispose of aluminum clamping blocks into the aluminum recycling bin
5. Recycle the PE bag and corrugated carton packaging through standard paper/plastic waste streams

Result: Zero kilograms to landfill. Zero hazardous waste classification. Zero disposal cost. Potential scrap metal recovery value of approximately USD 0.30–0.50 per unit at current commodity prices.

Secured Supply Chain: A Three-Tier Architecture for Zero Production Interruption

A vibration isolator typically represents less than 1% of a machine’s bill of materials cost, but its absence can halt an entire assembly line. This asymmetry—low unit cost, catastrophic shortage impact—makes supply chain resilience the most undervalued attribute in component selection. The JGX-0958D-108A supply chain is architected around three tiers of redundancy to ensure that no single event can interrupt delivery.

Tier 1: Vertically Integrated Manufacturing (Single Facility, Full Process Control)

• Wire rope forming: 6-axis CNC wire bending machine with closed-loop tension control (±2% winding preload accuracy). Programmable for coil counts from 6 to 12 loops and diameters from 4.8 mm to 9.5 mm without tooling changes
• Clamping block machining: 5-axis CNC milling centers with in-process probing (Renishaw OMP40). Automated dimensional inspection on every part: bolt hole diameter (M10 +0.2/-0 mm), center-to-center spacing (120 ± 0.1 mm * 80 ± 0.1 mm), and rope groove radius to ensure uniform clamping pressure distribution
• Assembly and testing: Pneumatic torque-controlled fastening to 37.5 ± 2.5 N·m. 100% static load-deflection verification at 108 kg compression, with data logging for statistical process control

Tier 2: Dual-Sourced Raw Materials with Geographic Separation

• SS304 wire rod (5.5 mm): Two ISO 9001-certified mills located in different provinces, each with independent melting, rolling, and wire-drawing capability. Quarterly audit with tensile testing (UTS ≥ 515 MPa, YS ≥ 205 MPa, elongation ≥ 35%) and metallographic grain size verification (ASTM E112 grain size 6–8)
• 6061-T6 aluminum plate (25 mm thick): Two extrusion suppliers with separate billet casting operations. Certified to ASTM B209 with conductivity verification (40–45% IACS minimum) to confirm T6 temper
• Safety stock: 90 days of raw material inventory maintained independent of customer order backlog. Raw material is not allocated to specific customer orders until the machining work order is released

Tier 3: Long-Term Agreement (LTA) Program Structure

• Pricing: Base price locked for 12-month periods, adjusted annually against a weighted index: 40% LME aluminium (3-month seller), 30% LME nickel (3-month seller), 15% China CPI, 15% fixed. Annual adjustment capped at ±8%. Full price transparency—index values and calculation are published in each quarterly business review
• Capacity allocation: Guaranteed production slots measured in pieces per calendar quarter. 120-day rolling forecast updated monthly; firm orders within the forecast window take priority over spot orders
• Delivery scheduling: Scheduled release orders against the LTA allow weekly or bi-weekly shipments matching your production cadence. Kanban-style automatic replenishment available for customers with EDI (Electronic Data Interchange) capability
• Expedite provision: LTA customers receive priority access to the 90-day safety stock buffer for emergency requirements, with 48-hour processing from expedite request to shipment
• Quarterly business review (QBR): Joint review of on-time delivery (target ≥98%), quality conformance (target ≤99.5% defect-free), cost reduction initiatives, and 12-month demand forecast

Total Cost of Ownership Analysis: Wire Rope vs. Elastomeric Isolators Over 10 Years

A purchasing decision based on unit price comparison alone systematically underestimates the true cost of vibration isolation in industrial equipment. The table below models a 50-isolator installation—a typical count for a medium-sized pump skid, compressor package, or HVAC chiller array—over a 10-year operating life.

Note: Downtime cost is the dominant variable and the most application-specific. The above range assumes a low-to-moderate downtime cost scenario. In continuous-process industries (chemical plants, power generation, semiconductor fabs), downtime costs can exceed USD 10,000/hour, making the economic case for wire rope isolators overwhelming even at a single isolator installation.

JGX-0958D-108A Technical Specifications

Application Sectors and Use Cases

Industrial Automation and Machine Tools

CNC turning centers, 5-axis machining centers, and grinding machines generate broadband vibration from spindle rotation (typically 6,000–20,000 RPM, corresponding to 100–333 Hz fundamental), tool-workpiece interaction, and axis acceleration/deceleration. The JGX-0958D-108A’s 9.5–12.5 Hz natural frequency in compression places the isolation region comfortably below these excitation frequencies, achieving 88–92% vibration reduction at spindle frequencies above 30 Hz. The all-metal construction withstands continuous exposure to water-miscible cutting fluids, way oil mist, and swarf without degradation.

HVAC and Building Services

Centrifugal chillers (typically 300–1,500 kW cooling capacity), screw compressors, and cooling tower fan-motor assemblies are the dominant vibration sources in commercial and industrial buildings. The JGX-0958D-108A’s amplitude-dependent damping characteristic is particularly well-suited to HVAC applications: it provides low damping (and thus high isolation efficiency) at the low vibration amplitudes typical of normal steady-state operation, while automatically increasing energy dissipation during the high-amplitude transients of compressor start-up and shut-down.

Energy and Power Generation

Reciprocating engines, gas turbine generator sets, centrifugal pump skids, and compressor packages in oil and gas, petrochemical, and power utility applications subject vibration isolators to a harsh combination of continuous broadband excitation, hydrocarbon exposure, and wide ambient temperature swings. The JGX-0958D-108A’s SS304 wire rope resists corrosion from sour gas (H₂S), hydrocarbon condensates, and saline atmospheres in coastal and offshore installations. For the most corrosive environments, an SS316 wire rope option with molybdenum-enhanced pitting resistance is available by special order.

Transportation and Mobile Equipment

Railcar underframe equipment (brake resistor grids, traction converters, auxiliary power supplies), locomotive engine-generator sets, and heavy commercial vehicle sleeper cab isolation are all applications where vibration isolators must absorb not only steady-state engine vibration but also transient shock inputs from track irregularities, potholes, and coupling impacts. The JGX-0958D-108A’s ≥50% shock attenuation at 30 g / 11 ms half-sine—combined with its all-metal construction that tolerates rain, road salt spray, and stone impact—makes it a direct replacement for elastomeric mounts that harden and crack after 2–3 years of underframe exposure.

Frequently Asked Questions

What is the minimum order quantity for the JGX-0958D-108A? Evaluation orders start at 10 pieces. For production programs, LTA agreements support scheduled releases with no minimum shipment quantity, enabling just-in-time (JIT) and kanban replenishment models. Standard lead time is 5–7 working days from finished goods inventory, 15–25 working days for production orders exceeding stock levels.

How do I verify the recyclability claim? Material composition certificates (EN 10204 3.1) are available for every production batch, documenting the exact alloy grade of the SS304 wire rope and 6061-T6 aluminum blocks. These certificates can be submitted to your waste management provider or sustainability auditor to confirm that both materials meet the acceptance criteria for standard metal recycling streams. A disassembly instruction sheet with photographic steps is included in every shipment.

What happens to the LTA if metal commodity prices change significantly? The LTA pricing mechanism is designed for transparency and bounded adjustment. Annual price revisions are capped at ±8% regardless of commodity index movement. If LME aluminium doubles and the index calculation would produce a +25% adjustment, the cap holds the increase to +8%—the supplier absorbs the difference. Symmetrically, if commodity prices collapse, the -8% cap protects the supplier from unsustainable price erosion. This structure gives both parties planning certainty while maintaining a link to objective, published price benchmarks.

Can the JGX-0958D-108A be supplied with SS316 wire rope for marine environments? Yes. An SS316 variant (UNS S31600, 2–3% molybdenum content for enhanced chloride pitting resistance) is available with a minimum order quantity of 100 pieces. This configuration is recommended for coastal installations within 5 km of salt water, offshore platforms, and marine vessel engine room applications where the combination of saline atmosphere and elevated temperature accelerates pitting corrosion in standard SS304.
