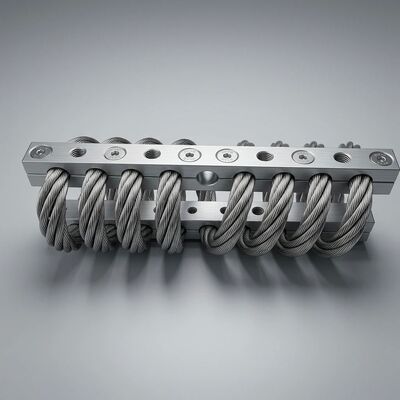

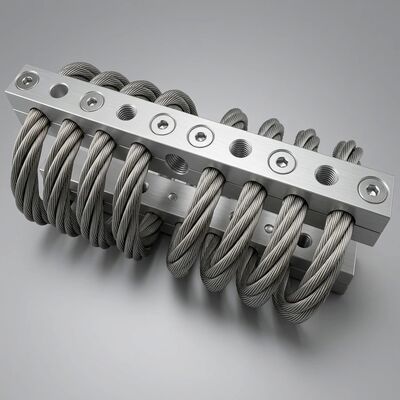

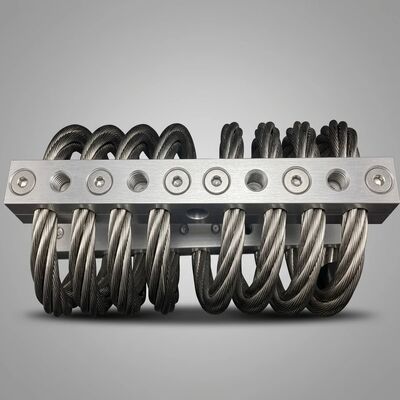

JGX-1598D-515B Wire Rope Vibration Isolator Providing Scalable Load Capacity and Structure-Borne Noise Isolation

JGX-1598D-515B Wire Rope Vibration Isolator – Modular Load Architecture with Precision Noise Control

The Challenge: One Machine, Many Load Scenarios

Modern industrial equipment rarely operates at a single static load point. Variable-speed drives, multi-stage compressors, and process equipment with fluctuating material loads all present dynamic conditions that challenge conventional fixed-rate isolators. A mount sized for the average load may bottom out during startup transients; one sized for peak conditions may provide inadequate isolation at normal operating loads.

The JGX-1598D-515B solves this through its inherently progressive stiffness curve and modular deployment architecture. Individual isolators handle 5 to 150 kg each, and they can be arranged in series, parallel, or matrix configurations to address virtually any load requirement without custom engineering.

Scalable Load Capacity – Configure Once, Adapt Anytime

Unlike cast elastomer mounts rated for a narrow load window, the JGX-1598D-515B's wire rope core exhibits a non-linear force-deflection response: soft initial stiffness for effective vibration isolation at normal operating loads, transitioning to progressively higher stiffness as deflection increases. This built-in overload protection prevents metal-to-metal contact during shock events or equipment startup transients.

For larger installations, the modular stacking approach delivers straightforward scalability:

• Parallel Configuration: Multiple isolators share the load equally—four JGX-1598D-515B units support up to 600 kg total
• Series Stacking: Two isolators mounted in series double the available deflection stroke for ultra-low-frequency applications
• Distributed Matrix: Isolators placed at calculated load-center positions for equipment with uneven weight distribution

This configuration flexibility means one standard part number covers an entire range of equipment sizes, reducing inventory complexity and procurement overhead.

Structure-Borne Noise Isolation – Measurable Acoustic Performance

Structure-borne noise—vibration transmitted through solid structures and re-radiated as audible sound elsewhere—is notoriously difficult to address after installation. The JGX-1598D-515B breaks this transmission path at the source with laboratory-verified performance:

• Vibration Isolation Efficiency: ≥85% across the 8–15 Hz primary frequency band
• Structure-Borne Noise Attenuation: Up to 20 dB(A) reduction measured at connected structural elements
• Resonance-Free Design: Unlike coil spring isolators, the wire rope's internal damping suppresses resonant amplification—no undamped surge frequencies that could amplify vibration at certain RPMs

The Physics Behind the Performance

The JGX-1598D-515B achieves its acoustic isolation through two complementary mechanisms:

1. Impedance Mismatch: The stainless steel wire rope presents a dramatically different mechanical impedance than the rigid equipment frame and foundation. When vibration waves encounter this impedance boundary, a significant portion of energy is reflected back rather than transmitted through—similar to how an acoustic baffle works in airborne sound control, but for solid-borne vibration.

2. Hysteretic Damping: As the helical coil flexes under load, individual wire strands within the rope slide against each other at the microscopic level. This dry friction (Coulomb damping) converts ordered vibrational energy into disordered thermal energy. Unlike viscous damping in hydraulic mounts, this mechanism is independent of velocity and temperature—delivering consistent performance from arctic cold starts to tropical continuous operation.

Engineering Specifications

Target Applications – Where Noise Matters

The JGX-1598D-515B is specified by acoustic consultants and mechanical engineers for noise-critical installations:

• Recording & Broadcast Studios: HVAC compressor and chiller isolation where NC-15 noise criteria must be maintained
• Healthcare Facilities: MRI chiller isolation, linear accelerator support equipment, laboratory vacuum pump isolation
• Semiconductor Fabrication: Process pump and scrubber isolation in cleanroom environments—no particulate shedding from the all-metal design
• Precision Manufacturing: CNC machining center isolation, grinding machine foundation decoupling
• Data Centers: CRAC unit and emergency generator isolation, raised-floor vibration management
• Renewable Energy: Wind turbine nacelle equipment isolation, solar inverter station vibration control

Engineering Support & Selection Guide

Selecting the correct isolator configuration requires understanding your equipment's static load, dynamic load range, center of gravity, and dominant excitation frequencies. We provide:

• Complimentary load-deflection calculation for your specific equipment
• 3D mounting layout drawings with bolt-pattern specifications
• Isolation efficiency predictions across your equipment's operating RPM range
• On-site commissioning support for large-scale or critical installations

Contact our application engineering team with your equipment specifications for a detailed isolation proposal.
